Tekin Redline Gen3 Spec-R Sensored Brushless Motor (17.5T)

Tekin Redline Gen3 Spec-R Sensored Brushless Motor (17.5T)
Price:
NZ$ 189.00 including GST
TT2697
Purchase Qty:


Tekin's SPEC-R brushless motors are professional racing power plants designed to squeeze out every ounce of power available and propel you to the finish line first. Based on the widely popular GEN3 motor platform, the SPEC-R brings new technology to the racetrack. Tekin's ULR (ultra low resistance) design puts top shelf performance in your RC racing vehicle using proprietary specifications and the highest grade materials available for ultra smooth control across a wide powerband. ULR technology and a Yellow High Strength Rotor  make the SPEC-R lineup of motors the premium choice for stock racing. Drop a SPEC-R motor in your chassis and leave your competition in the dust.

Available in 21.5T 17.5T, 13.5T and 6.5T, there is a SPEC-R motor available for your racing class. Please note that the 6.5T SPEC-R is designed for 1/12 Spec classes and not intended for use in offroad applications. Combine the SPEC-R motors with the RS Pro Black Edition ESC for the ultimate in Ultra Low Resistance systems.

Input Voltage: 1S-2S LiPo

Weight: 5.18oz / 147g

Shaft Dimensions: 3.2mm (1/8") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 50mm / 1.909"

Bearing Dimensions: Front: 4x13x5mm

                                     Rear: 1/8x3/8x5/32"

Rotor Size: 12.5mm High Strength YELLOW

 Rebuildable: Yes





OFF ROAD



 1:10 2WD Buggy 17.5T / 13.5T

 1:10 2WD Truck 17.5T / 13.5T

 1:10 2WD Short Course 17.5T

 1:10 4WD Buggy 13.5T SPEC



ON ROAD



 1:12 2WD Pan Car 17.5T / 13.5T / 6.5T

 1:10 2WD Pan Car 21.5T / 17.5T

 1:10 World GT

 1:10 Formula 1 25.5T / 21.5T

 1:10 4WD Touring Car 25.5T / 21.5T / 17.5T

 1S LiPo Classes



OVAL



 1:10 2WD 17.5T / 13.5T

 1:10 SK Car

 1:10 Stock Car

 1:10 Winged Sprint

 1S LiPo Classes

 Tekin ULR Ultra Low Resistance Design

 0-60° Adjustable Timing

 CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

 New Low Resistance High Power Solder Tabs

 High Strength Neodymium Sintered Magnet

 ABEC5 High RPM Precision Bearings

 Precision Engineered for Maximum Energy Conversion

 Lightweight Chassis Design

 High Purity Copper Windings Maximize Conductivity

 Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

 Anodized End-bell plates maximize corrosion and wear resistance

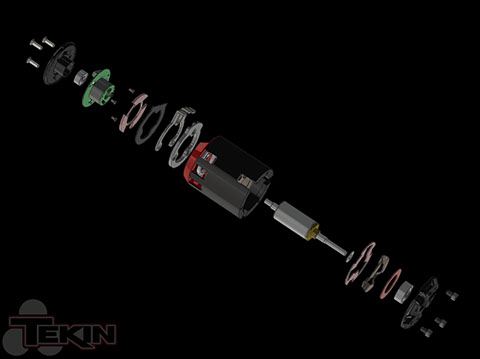

 Rebuild-able Design

 Solder-less Sensor PCB replacement
