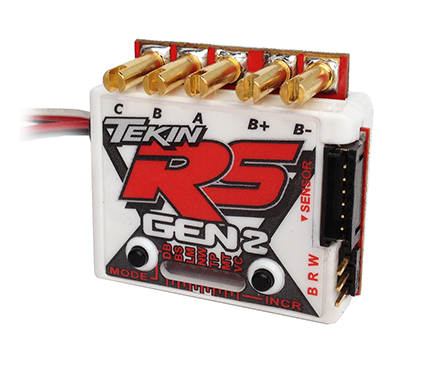

Tekin RS Gen2 Sensored Brushless ESC

Tekin RS Gen2 Sensored Brushless ESC
Price:
NZ$ 299.00 including GST
T1154
Purchase Qty:


The RS GEN2 brushless speed control is the next generation in intelligent operating motor drive technology. Continuing the proven award-winning legacy of the RS familly, the GEN2 is fitted with todays state of the art components. The RS GEN2 delivers what racers require; reliability, precise control and unmatched power handling capability.

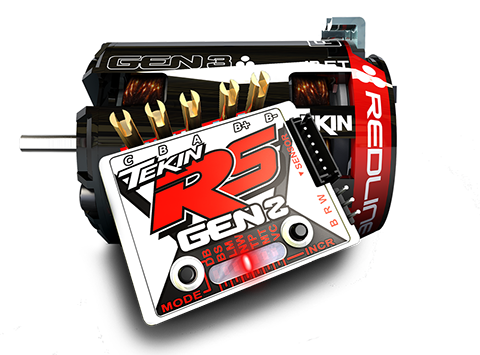

Packed with new features, the RS GEN2 delivers a programmable High-Voltage BEC, HotWire 3.0 Bluetooth Connectivity and Data Logging capabilities in a small sized package. Rated for 8.5 turn motors and higher, the GEN2 is the perfect ESC for both experienced and new racers. Couple the RS GEN2 with a Redline GEN3 brushless motor for the ultimate package in race equipment.



Controls: Forward/Brake/Reverse

Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD

Motor Limit Brushless Mode: 2S - 8.5T 2-pole 36mm Can

                                                   3S - 13.5T 2-pole 36mm Can

Motor Limit Brushed Mode: 2S - 12 Turn 36mm Can

                                                3S - 20 Turn 36mm Can

Max Current: 120amps per phase*

BEC: 6.0v / 7.4v @ 5.5amps

Dimensions: 1.0 x 1.3 x .51" / 24.5 x 34 x 12.9mm

Weight: .85oz / 24g



*per manufacturer spec



OFF ROAD



 1:10 2WD Buggy

 1:10 2WD Truck

 1:!0 2WD Short Course



ON ROAD



 1:12 2WD Pan Car

 1:10 2WD Pan Car

 1:10 World GT

 1:10 2WD Formula 1

 1:10 4WD Touring Car



OVAL



 1:10 2WD

 1:10 SK Car

 1:10 Stock Car

 1:10 Winged Sprint

 QuickTune™ One Touch Programming
 Adjustable Torque Control *
 Adjustable Throttle and Brake Frequencies *

 High Voltage Programmable BEC *
 HotWire™ Programming Port *
 Data Logging Capability *
 Sensor Checker
 On-Board Temperature Indicator

 ESC Self Diagnostics with Error Codes
 Fully Proportional Forward/Brake/Reverse

 Brushless and Brushed Motor Drive

 Sensored or Sensorless Operation

 LiPo Safe with Custom Voltage Cutoffs

 Sensor Plug for Precise Commutation

 Lightweight Chassis Design

 HDAC: High Density Copper PCB's
 Ultra-smooth and Precise Throttle and Braking Control



ON BOARD QuickTune™ PROGRAMMABLE FEATURES

 DB - Drag Brake (13 steps)

 BS - Brake Strength (13 steps)

 LM - Torque Limiter (7 steps)

 NW - Neutral Width (13 steps)

 TP - Timing Profiles 5 Preset - 2 Custom*

 MT - Motor Type

Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

 VC - Voltage Cutoff : 2S, 3S, Custom*

* requires HotWire™ sold separately.
