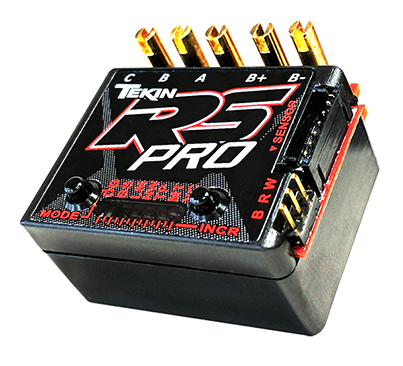

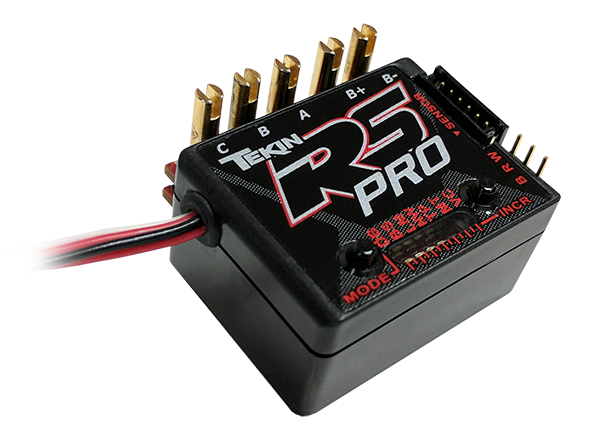

Tekin RS Pro Black Edition BL Sensored/Sensorless Brushless ESC
The RS PRO is back! This RS PRO Black Edition utilizes both hardware and software advances recently developed for our latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance. Capabilities such as Data Logging and HotWire 3.0 Bluetooth Connectivity allow you fine tune your system and gain an advantage over the competition.
The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.
Controls: Forward/Brake/Reverse
Input Voltage: RS PRO: 1S-3S LiPo / 4-9S NiMH-NiCD*

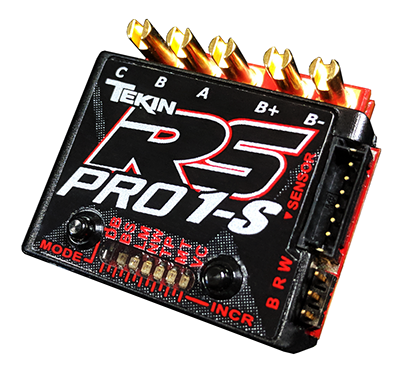

RS PRO 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
Motor Limit Brushless Mode: 1S - 2.5T 2-pole 36mm Can
2S - 2.5T 2-pole 36mm Can
3S - 8.5T 2-pole 36mm Can / 3500kV Max
Motor Limit Brushed Mode: 1S - 6 Turn 36mm Can
2S - 6 Turn 36mm Can
3S - 12 Turn 36mm Can
Max Current: 480amps per phase**
ON Resistance: .000096ohm**
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .68" / 24.5 x 33 x 17.25mm
Weight: 1.23oz / 35g
*per manufacturer spec
OFF ROAD
1:10 2WD Buggy
1:10 2WD Truck
1:!0 2WD Short Course
1:10 4WD Buggy
ON ROAD
1:12 2WD Pan Car
1:10 2WD Pan Car
1:10 World GT
1:10 2WD Formula 1
1:10 4WD Touring Car
OVAL
1:10 2WD
1:10 SK Car
1:10 Stock Car
1:10 Winged Sprint
ULR: Ultra Low Resistance Design
Specifically Designed for Spec & Stock Racing
RS PRO 1-S equipped with built-in Booster
QuickTune™ One Touch Programming Adjustable Torque Control * Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC * HotWire™ Programming Port * Data Logging Capability * Sensor Checker On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
Lightweight Chassis Design
HDAC: High Density Copper PCB's Ultra-smooth and Precise Throttle and Braking Control
ON BOARD QuickTune™ PROGRAMMABLE FEATURES DB - Drag Brake (13 steps)
BS - Brake Strength (13 steps)
LM - Torque Limiter (7 steps)
NW - Neutral Width (13 steps)
TP - Timing Profiles 5 Preset - 2 Custom*
MT - Motor Type
Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
VC - Voltage Cutoff : RS PRO 2S, 3S, Custom*
RS PRO 1-S - 1S, Custom*
* requires HotWire™ sold separately.
