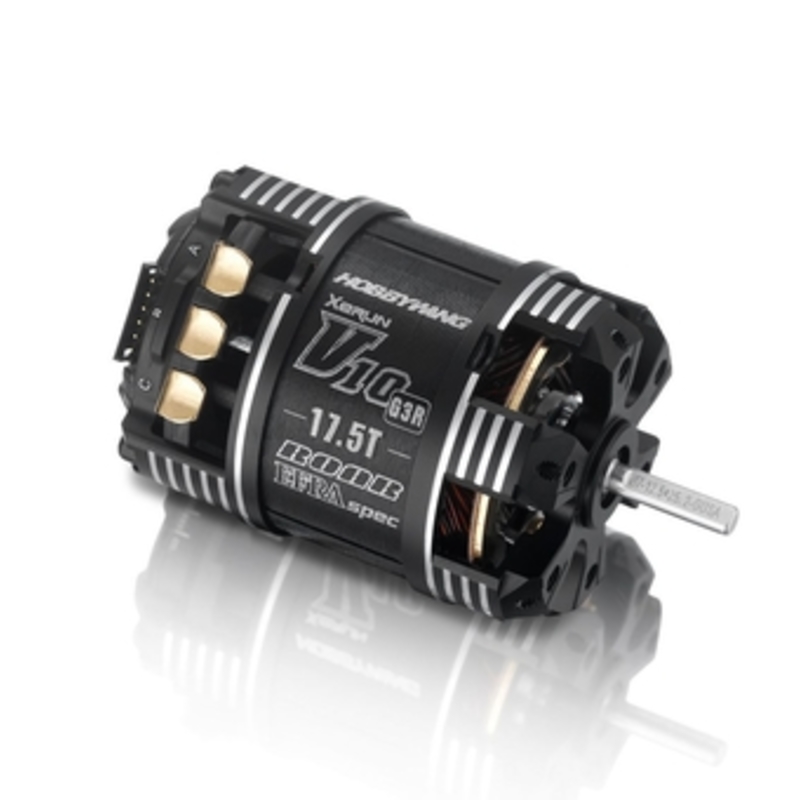

Hobbywing XERUN V10 Sensored BL Motor Black G3R 17.5T
Hobbywing XERUN V10 Sensored BL Motor Black G3R 17.5T 30401131
Designed for high level racing. The torque of the G3R Stock motor is improved by 13.3%, the KV & max output power are improved by 6.5% and 8.6% respectively compared to the V10 G3 motor.
Low resistance but high efficiency. The resistance of this G3R is reduced by 11% while the efficiency is improved by 6% when compared to the V10 G3.
Lightweight. This G3R weighs only 139g and is 8.6% lighter than some popular stock motors on the market.
The built in high precision hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
The special shell design which makes the stator core expose to the air maximises cooling. Big holes on the end plates further help reduce heat.
The use of high performance stator core, heat (200degC) resistant wire, heat (180degC) resistant rotor with strong structure, world class high precision and high strength bearings and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
Complies with IFMAR, ROAR, EFRA, BRCA rules and certificated by RoHS, CE, FCC and etc.
The built-in high precision Hall sensor combined with the high precision and balanced rotor will guarantee remarkable linearity of the motor.
The G3 Modified & Stock motors only weigh 161g and 132g respectively; the weights are reduced by about 11% & 21%
when comparing with the V10 G2 motor. With the light weights, drivers can easily adjust the balance of their vehicles.
By comparison (with the V10 G2 motor), for improving the load-carrying capacity, the size of the front bearing of the G3 motor is increased by 26% ; while for lower resistance, the size of the rear bearing is reduced by 6%. The asymmetric bearing design will make the motor running more stable and smooth.
Great Heat Dissipation
The special shell design which makes the stator core (/laminations) expose to the air will maximize cooling, the big holes(*) on the front & rear end plates will guarantee outstanding heat dissipation of the motor. (*Note: the 5.5T~8.5T motors are mainly adopted by off-road vehicles, so the factory default end plates for those motors are the ones with small holes.)
Stepless Adjustable Mechanical Timing
The mechanical timing can be adjusted finely and smoothly; the skid-proof lines
at the rear end of the motor will guarantee stability of the timing after adjustment
The detachable structure design for regular cleaning & maintenance will effectively prolong the service life of the motor and retain its efficiency.
Two Different End Plates
The end plates with big holes adopted by the 3.5T~5.0T & 10.5T~21.5T motors will guarantee excellent heat dissipation of the motor for on-road applications. The end plates with small holes used by the 5.5T~8.5T motors will effectively prevent sand or dirt from getting inside and damaging the motor for off-road applications. Users can purchase and mount the end plates with big or small holes as per actual needs.
The use of high-performance stator core (/laminations), heat(200?)-resistant pure copper wire, heat(200?)-resistant
rotor with strong structure, international top brand high-precision and high strength bearings, and copper solder tabs with super current endurance will guarantee excellent performance and great durability.
