Hotwire 3.0 Bluetooth - ESC Programmer

Hotwire 3.0 Bluetooth - ESC Programmer
Price:
NZ$ 99.00 including GST
TT1452
Purchase Qty:


Unlock the full potential of your Speed Control or Servo with the HotWire 3.0 unit. Connect to Android or iOS devices for Speed Control programming using Bluetooth wireless technology without touching your car, or Windows computers and Android devices using the USB connection. The HotWire provides access to additional tools such as Data Logging, Adjustable BEC settings plus many more in-depth tuning options to fine tune the performance characteristics of your Speed Control.  The HotWire also lets you create and share tweaks and entire track/condition specific profiles with other Tekin users. Best of all the HotWire lets you download* completely new software as it is developed and upload it to your Speed Control or Servo – you get unrestricted access to upgrade your Speed Control or Servo to Tekin’s latest and newest performance mods!  Visit www.teamtekin.com to get the latest software updates for all your Tekin products.

 Connect via PC, Netbook, Android and iOS Devices
 Connect to Tekin ESCs via Bluetooth and USB connection
 Connects to all Tekin GEN2+ ESCs with EZ Data Port
 Connects to Tekin Servos with TT3848 Adapter
 Quick and Easy Installation
 Option to Leave Installed in Vehicle
 Make ESC Adjustments on the fly without touching your vehicle
 Connect Multiple HotWire 3.0 Devices

 Datalogging Capabilities

 LED Status Indicator

 USB Cable Included

 Free HotWire Software and ESC/Servo Firmware updates

 180-Day Factory Warranty and Support

 Access to Team Driver Speed Control Profiles

 Create, Download and Share Custom Speed Control Profiles



TT1452

HotWire V3.0 Connects to:

Windows USB

All Tekin ESCs*

All Tekin Servos*

The HotWire V3.0 can connect via Windows USB to program Tekin Servos and all Tekin ESCs*. It can also connect to GEN2 & UP ESCs with a Data Port via Bluetooth on most Android and iOS devices, see above for minimum device requirements.

*TT3848 HotWire 3.0 Adapter Cable needed to connect to Tekin Servos and GEN1 ESCs without a Data Port via USB only.

Part #: TT1452 HotWire V3.0

Dimensions: 1.02 x 0.93 x 0.38"  / 26 x 23.75 x 9.75mm

Weight: .30oz / 8.4g



Android USB

All Tekin ESCs*





Android Bluetooth

GEN2 & UP ESCs





Apple iOS Bluetooth

GEN2 & UP ESCs



TT1451

 Connect via USB to PC, Netbook and most Android Devices
 Connects to all Tekin ESCs and Servos
 Connects to GEN2+ ESCs via Data Port using TT3825 Adapter
 Tune ESC and Servos to your liking

 Datalogging Capabilities

 LED Status Indicator

 USB Cable Included

 Free HotWire Software and ESC/Servo Firmware updates

 180-Day Factory Warranty and Support

 Access to Team Driver Speed Control Profiles

 Create, Download and Share Custom Speed Control Profiles

HotWire V2.0 Connects to:

Windows USB

All Tekin ESCs**

All Tekin Servos

The HotWire V2.0 can connect via Windows USB to program Tekin Servos and all Tekin ESCs**. It can also connect via USB on most Android 3.1 & UP devices to program all Tekin ESCs through the receiver plug.

**
TT3825 HotWire 2.0 Adapter Cable needed to connect to GEN2 ESC & UP Data Port.



Part #: TT1451 HotWire V2.0

Dimensions: 1.02 x 0.93 x 0.38"  / 26 x 23.75 x 9.75mm

Weight: .30oz / 8.4g



Android USB

All Tekin ESCs



Download the HotWire App on your Android or iOS device to program your Tekin Speed Control on the go.



Connect to iOS devices with the HotWire 3.0 via Bluetooth LE technology to fine tune your settings on the fly!



Connect to Android devices through USB connection with the HotWire 2.0 or take advantage of the HotWire 3.0 Bluetooth LE technology to wirelessly adjust your settings!



Mobile tuning access gives you the freedom to hit the track, road or trails and take your HotWire with you. Install multiple HotWires in multiple vehicles and connect them all through the HotWire App for easy access anytime, anywhere.





Tekin HotWire runs on the following mobile operating systems:



Bluetooth

- Android 4.3 & UP (device must have BLE)

- iOS 8 & UP (iPhone 4S and iPad2 or newer)



USB

- Android 3.1 & Up



Hotwire App Shown on Apple iPhone

Hotwire App Shown on Google Pixel

Download the HotWire software for Windows and access Tekin Speed Control and Servo programming. Gain access to Team Driver Speed Control setups as well as the ability to create, save, load and share ESC setups with friends.




ESC Programmable Features*



 Update ESC Firmware

 Create, Save, Load and Share Custom ESC Profiles
 Drag Brake (0-100 steps) <<video>>

 Brake Strength (0-100 steps) <<video>>
 Brake Minimum (0-30 steps) <<video>>

 Active Drag (ON/OFF) <<video>>
 Active Braking (0-6 steps) <<video>>

 Brake Frequency (750hz - 12kHz) <<video>>
 RPM Intelligent Brake Strength (0-10steps)
 Throttle Minimum (0-30 steps) <<video>>

 Throttle Frequency (2kHz - 12kHz) <<video>>

 Torque Limiter (0-10 steps) <<video>>
 Reverse Speed (0-100 steps)

 Reverse Delay (0-2seconds)

 Neutral Width (0-100 steps) <<video>>
 Push Control (0-100 steps) <<video>>

 Timing Profiles 5 Preset - 2 Custom <<video>>
 Locked Spec Mode
 Boost (0-55 steps)

 Boost RPM Range (user programmable)

 Turbo (0-50 steps)

 Turbo Delay (0-2seconds)

 Turbo Ramp (1-10 steps)
 Sensored Only Mode
 Dual Drive Mode

 Motor Type <<video>>

Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / REV Motor Rotation

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

 Voltage Cutoff - 2S, 3S, Custom Per Cell <<video>>
 1S LiPo Mode

 Fan ON/AUTO Modes





*Comprehensive list of features, not all are available on every Tekin ESC. Refer to each ESC product page Features section for list of settings available.





Tekin HotWire runs on the following Windows operating systems:



USB
- Android 3.1 & Up

- Windows XP

- Windows Vista (32 bit & 64 bit)

- Windows 7 (32 bit & 64 bit)

- Windows 8* (32 bit & 64 bit) *Requires .NET 3.5

- Windows 10* (32bit & 64bit) *Requires .NET 3.5

(To run on Mac try using Bootcamp or Parallels)

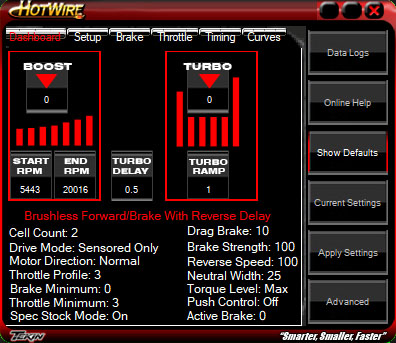

HotWire ESC App Shown on Windows

HotWire Servo App Shown on Windows

Servo Programmable Features



 Update Servo Firmware
 Feel - Mild to Aggressive

 Speed Limit

 Torque (0-100%)

 Torque Delay

 Direction - Normal / Reverse

 Center Point

 Travel

 Soft Starting Speed & Torque

 Max Temp Alarm

 Low Voltage Alarm

 Over Voltage Alarm

 Bind Relief

 Fail Safe Speed and Position

 Set Custom Servo Name
