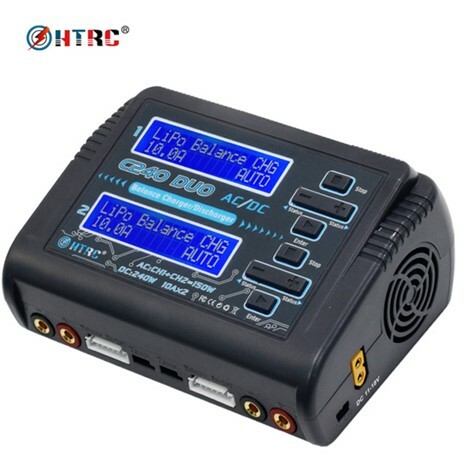

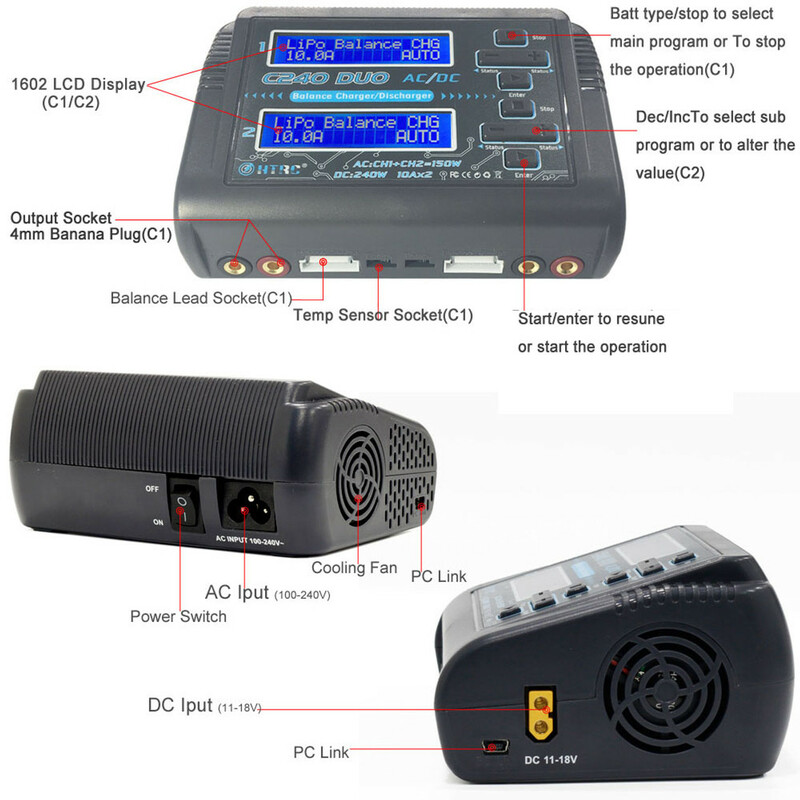

HTRC C240 DUO AC 150W DC 240W Dual Channel 10A RC Balance Lipo Battery Charger

Information

HTRC C240 DUO AC 150W DC 240W Dual Channel 10A RC Balance Lipo Battery Charger


Features:

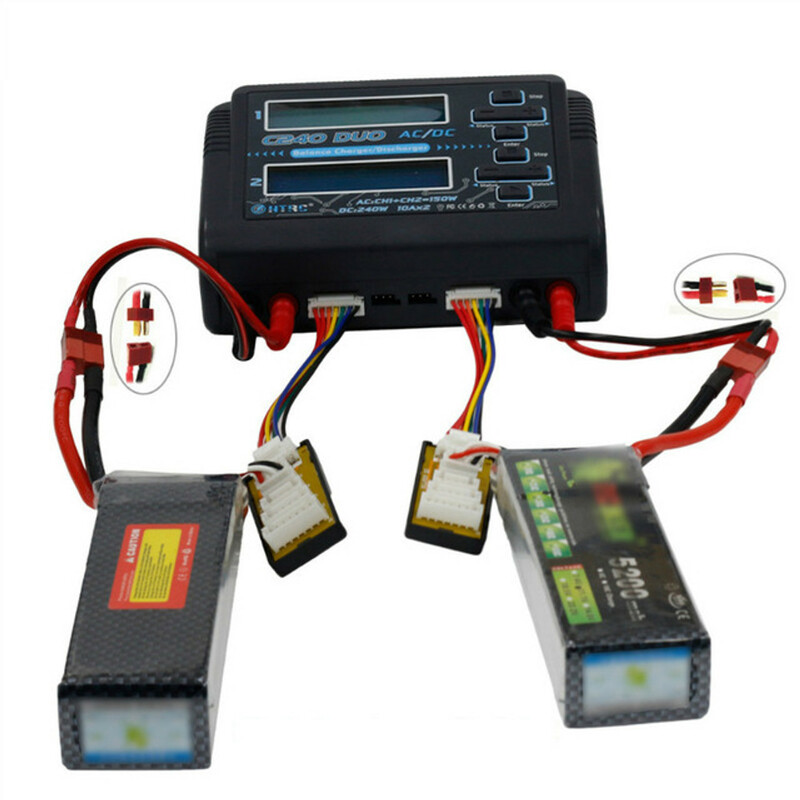

*Twin-channel,charge two different kinds of batteries simultaneously.
*Practical for variety of batteries.
*Automatic identification of Li-Po batteries cells counts
*Built in cool fan for easy heat dissipation
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, fast charge,storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-extra function:
-Battery Meter:Display lithium battery cell counts, total voltage, battery capacity percentage,each cell's  voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell's resistance.(does not support 1s battery)
-Balancer: individual-cell-voltage balancing,cell voltage Monitoring
-Smart battery:Smart battery I,II,III,and Digital DC Power.(Need optional DJI Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Built-In PFC
*Firmware update.

Specification:
- Model No:HT-0098
- Input: AC 100-240V / DC 11-18V
- Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
- Discharge power:10W*2
- Charge current range:0.1-10A *2
- Discharge current range:0.1-2A*2
- Lilon/LiPo/LiFe/LiHV cell count :1-6cells*2
- NiCd/NiMH battery cell count:1-15cells*2
- PB Battery voltage:2-20V*2
- Smart battery:I/II/III*2
- Current drain for balancing: 500mA/cell
- Net Weight:0.48kg
- Dimension:145*105*64mm
- Gross weight:0.9kg

Package Included:
- 1x C240 charger
- 2x Charge cable banana plug to T-Plug
- 2x Extension charge cable T-Plug to XT60
- 2x balance board with pin cord
- 1x AC Cord
- 1x DC Cord
- 1x User's Manual
