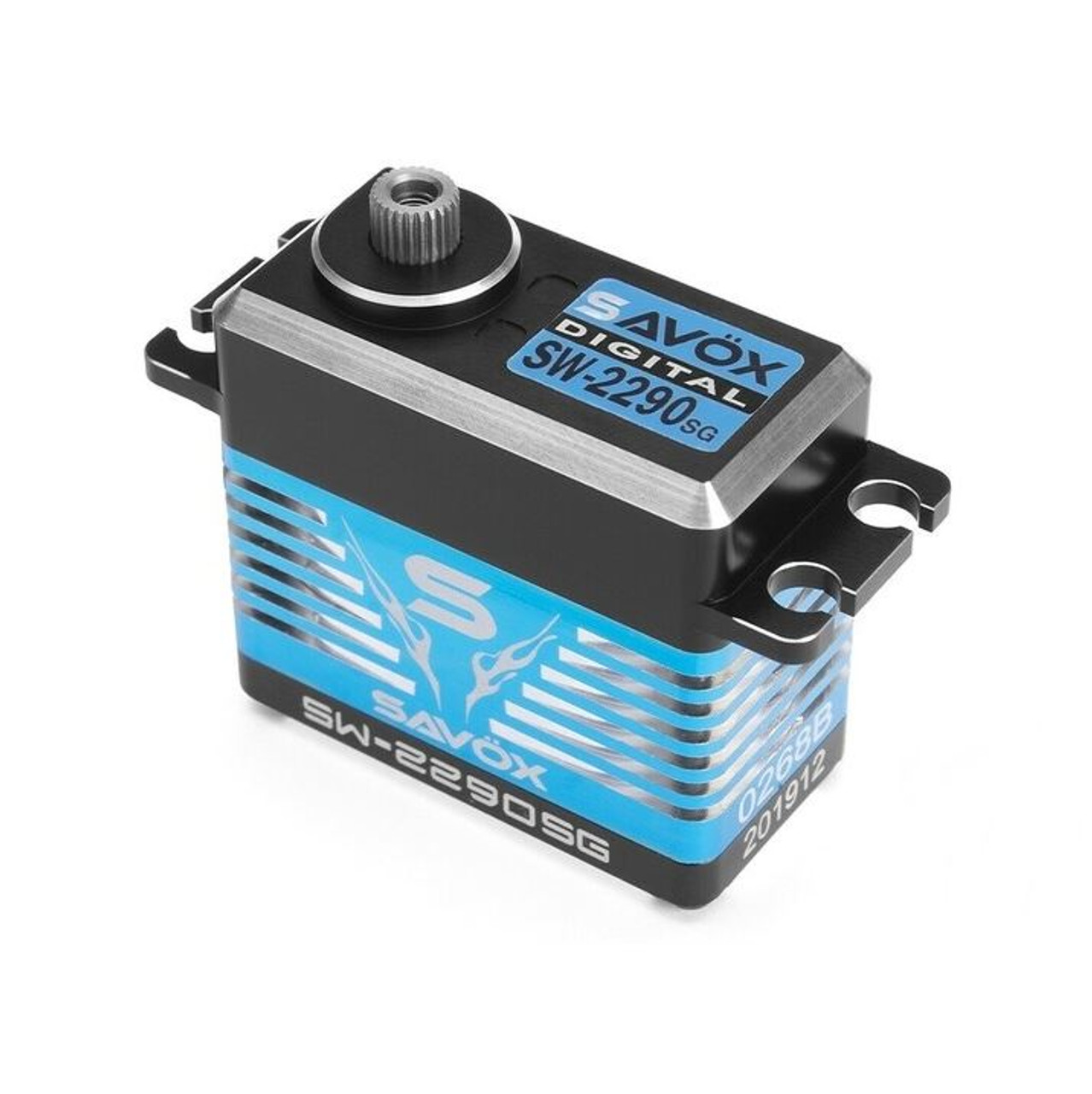

SAVOX 2290 MONSTER TORQUE BRUSHLESS HV IP67 WATERPROOF FULL CNC Servo
Information
Savox Brushless IP67 Water Proof Full CNC Servo 50kg/cm 0.13sec @ 7.4v 82g 40.3x20.2x38.7mm
Technical Specifications:
Servo Technology: Digital High Voltage
Servo Case: Aluminium
Input Voltage (V): 6.0V - 8.4V
Water Protection: Waterproof
Motor Type: Brushless Motor
Gear Material: Steel Gears
Ball Beared: Ball Beared
Length (mm): 40.3 mm
Width (mm): 20.2 mm
Height (mm): 38.7 mm
Weight (g): 81.0 g
Speed 60°/Sec @ 6.0V: 0.16/60° sec
Speed 60°/Sec @ 7.4V: 0.13/60° sec
Speed 60°/Sec @ 8.4V: 0.11/60° sec
Torque kg/cm @ 6.0V: 45.0kg/624.9oz-in
Torque kg/cm @ 7.4V: 55.0kg/763.8oz-in
Torque kg/cm @ 8.4V: 70.0kg/972.1oz-in
Connector type: JR
Spline size: 25T Spline
Servo Technology: Digital High Voltage
Servo Case: Aluminium
Input Voltage (V): 6.0V - 8.4V
Water Protection: Waterproof
Motor Type: Brushless Motor
Gear Material: Steel Gears
Ball Beared: Ball Beared
Length (mm): 40.3 mm
Width (mm): 20.2 mm
Height (mm): 38.7 mm
Weight (g): 81.0 g
Speed 60°/Sec @ 6.0V: 0.16/60° sec
Speed 60°/Sec @ 7.4V: 0.13/60° sec
Speed 60°/Sec @ 8.4V: 0.11/60° sec
Torque kg/cm @ 6.0V: 45.0kg/624.9oz-in
Torque kg/cm @ 7.4V: 55.0kg/763.8oz-in
Torque kg/cm @ 8.4V: 70.0kg/972.1oz-in
Connector type: JR
Spline size: 25T Spline
