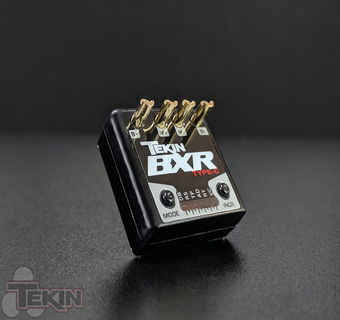

TEKIN BXR Waterproof Brushed ESC

TEKIN BXR Waterproof Brushed ESC
Price:
NZ$ 112.95 including GST


or four payments of $28.24 with
Afterpay Payment Offer Learn More

TT1094
Purchase Qty:


Tekin's BXR Type-C Brushed ESC gives your Scale Crawler precise control and a feature set unmatched by other brushed only ESCs. Features like 3rd Channel Input for on-the-fly Drag Brake adjustments and Tekin's exclusive Active Drag Brake Technology make the BXR the perfect Scale Crawler solution. Tekin's Element Proof Design allows you to hit the trails with confidence no matter the weather. Small, capable and versatile; the BXR is ready for any adventure!

 3rd Channel Input for On-The-Fly Drag Brake Adjustments <<setup>>

 Super Small Footprint

 NEW HD Easy Solder Gold Plated Posts

 Element Proof Design*
 Active Drag Brake System

 QuickTune™ Programming

 One-Touch Radio Calibration

 Easily Access Programming, Anywhere, Anytime

 HotWire Compatible for Advanced Programming and Updates

 On-Board Temperature Indicator

 Self Test Diagnostics with Error Codes

 Fully Proportional Forward/Brake/Reverse

 LiPo Safe with Custom Voltage Cutoffs

 DGF2: Digital Glitch Filtering V2

 HDAC: High Density Copper PCB's

 Ultra-smooth and Precise Throttle and Braking Control



* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged.



ON BOARD QuickTune™ PROGRAMMABLE FEATURES

 DB - Drag Brake (11 steps)

 RS - Reverse Speed (11 steps)

 TP - Throttle Profile (5 steps)

 BT - Brake Type (3 steps)

Modes - FWD Only / FWD-REV / FWD-REV Delay

 AD - Active Drag (ON/OFF)

 VC - Voltage Cutoff  2S / 3S

Controls: Forward/Brake/Reverse

Input Voltage: 2S-3S* LiPo / 4-9S NiMH-NiCD

Motor Limit 2S LiPo: 20T 540 Brushed

Motor Limit 3S LiPo: 30T 540 Brushed

Max Current:  60amps**

BEC: 6.0v @ 3.7amps on 2S LiPo

Dimensions: 1.0 x 0.93 x 0.35" / 25.4 x 23.6 x 9mm

Weight: 0.39oz / 11g



*3S and some high torque servos requires the use of an external BEC module.

**per FET manufacturer spec
