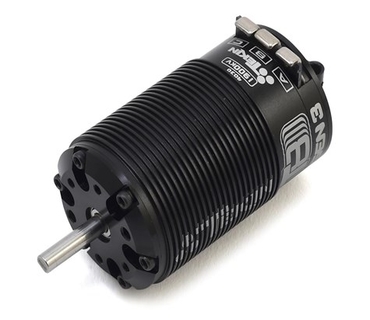

Tekin Redline T8 GEN3 4030 1/8 Buggy Brushless Sensored Motor (1900kV)

Tekin Redline T8 GEN3 4030 1/8 Buggy Brushless Sensored Motor (1900kV)
Price:
NZ$ 259.00 including GST
TT2342
Purchase Qty:


Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.

Voltage Limit: 2650kV - 4S LiPo

                         2250kV - 4S LiPo

                         2050kV - 4S LiPo

                         2000kV - 4S LiPo

                         1900kV - 4S LiPo

                         1700kV - 5S LiPo

                         1550kV - 5S LiPo

                         1400kV - 6S LiPo

                         1350kV - 6S LiPo

Weight: 4030 Buggy 11oz / 311g

              4038 Truggy 13oz / 368

Shaft Dimensions: 5mm (.196") x 19mm

Motor Diameter: 40mm / 1.57"

                            42mm / 1.65" Including Fins

Motor Length: 4030 Buggy 69mm / 2.71"

                         4038 Truggy 77mm / 3.03"

Bearing Dimensions: Front: 5 x 16 x 5mm

                                     Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm

Rebuildable: Yes





OFF ROAD



 1:8 4WD Buggy

 1:8 4WD Truggy

 1:8 4WD Monster Truck



ON ROAD



 1:8 4WD GT

 1:8 4WD GP



 4 Pole 12 Slot High Torque Motor Design

 1:8 Scale Chassis Specific

 ROAR Legal

 CNC Machined 6061-T6 Billet Aluminum Ribbed Heat Sink Can

 Neodymium Sintered Magnets

 Precision Engineered for Maximum Energy Conversion

 High Purity Copper Windings Maximize Conductivity and Efficiency

 Low Resistance, High Power Solder Tabs

 Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

 Anodized End-bell plates maximize corrosion and wear resistance

 High RPM ABEC-5 Precision Bearings

 Oversized Front Bearing adds Durability

 Rebuild-able Design

 Designed to be paired with the RX8 GEN3 ESC
