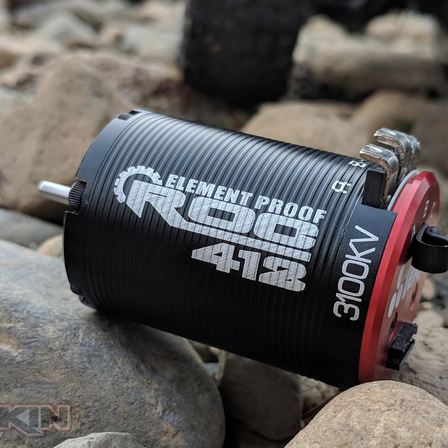

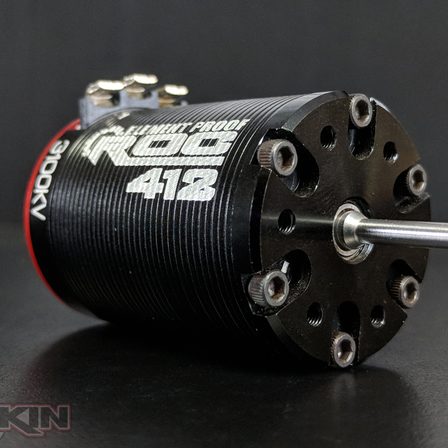

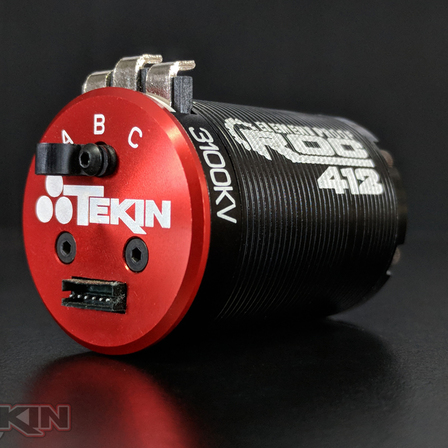

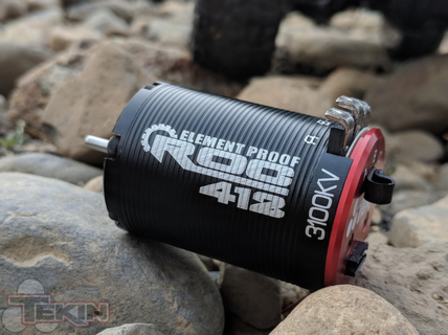

Tekin ROC412 Rock Crawler Motor

Tekin ROC412 Rock Crawler Motor
TT2622 - ROC 412 EP 3100kV
Price:
NZ$ 189.95 including GST

or four interest-free payments of $47.49 with
Learn More

TT2622
Out Of Stock

Tekin's Element Proof ROC412 offers protection from the elements, giving you the power to take on the trails or track without fear of water, mud or snow! Designed for heavier trail or rock racing rigs, the ROC412 delivers more torque and more power on demand.  Using a 4-pole 12-slot motor design, the ROC412 harnesses the benefits of brushless efficiency and extreme amounts of torque to stay on the trail longer with more power.

Couple the ROC412 with an RX4 or RS GEN2 speed control for the smoothest brushless crawling system available. Rock Racing power and Crawling precision are at your disposal

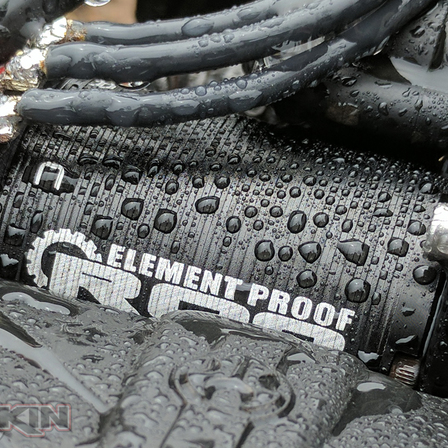

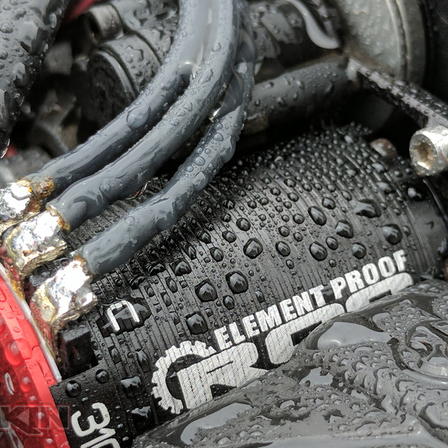

 Element Proof design tackles Water, Mud and Snow*

 Crawler, Rock Race and Trail Rig Specific

 4 Pole 12 Slot High Torque Motor Design

 18.5mm Rotor provides superior Torque and Braking Power

 CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

 Neodymium Sintered Magnets

 Precision Engineered for Maximum Energy Conversion

 High Purity Copper Windings Maximize Conductivity and Efficiency

 Low Resistance, High Power Solder Tabs

 Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

 Anodized End-bell plates maximize corrosion and wear resistance

 High RPM ABEC-5 Precision Bearings

 Oversized Front Bearing adds Durability

 Rebuild-able Design



* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting.



The ROC412 EP is not intended for operation while submerged in liquid.



Anytime your motor sees water it is important that you perform the proper after run maintenance. Warranty does not cover neglect, lack of maintenance, bearings, rust or any damage that may occur if the motor is submerged in water.



Voltage Limit: 5700kV - 2S LiPo

                         4600kV - 2S LiPo

                         3100kV - 3S LiPo

                         2300kV - 4S LiPo

                         1800kV - 4S LiPo

                         1200kV - 6S LiPo

                           500kV - 6S LiPo

Weight: 6.3oz / 179g

Shaft Dimensions: 3.2mm (1/8") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 52.5mm / 2.10"

Bearing Dimensions: Front: 5 x 14 x 5mm

                                     Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm

Rebuildable: Yes





TRAIL & ROCK RACE



 1:10 4WD Trail Truck

 1:10 4WD Rock Racer

 Element Proof design tackles Water, Mud and Snow*

 Crawler, Rock Race and Trail Rig Specific

 4 Pole 12 Slot High Torque Motor Design

 18.5mm Rotor provides superior Torque and Braking Power

 CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

 Neodymium Sintered Magnets

 Precision Engineered for Maximum Energy Conversion

 High Purity Copper Windings Maximize Conductivity and Efficiency

 Low Resistance, High Power Solder Tabs

 Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

 Anodized End-bell plates maximize corrosion and wear resistance

 High RPM ABEC-5 Precision Bearings

 Oversized Front Bearing adds Durability

 Rebuild-able Design



* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting.



The ROC412 EP is not intended for operation while submerged in liquid.



Anytime your motor sees water it is important that you perform the proper after run maintenance. Warranty does not cover neglect, lack of maintenance, bearings, rust or any damage that may occur if the motor is submerged in water.
