Features
- Suspension flex is now tuneable with all new suspension arms able to accept stiffener plates
- Suspension geometry has been improved

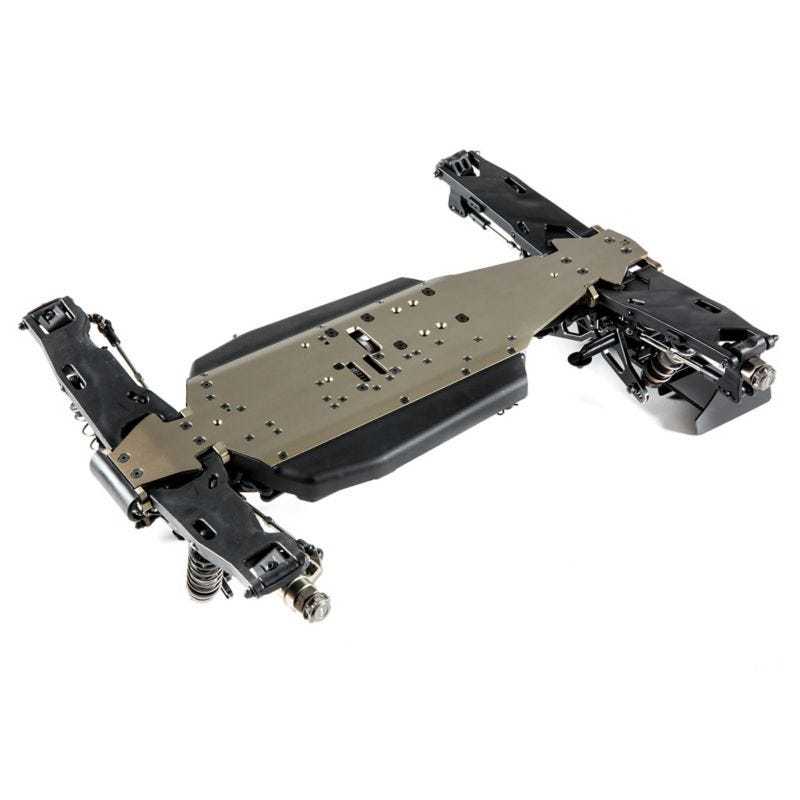

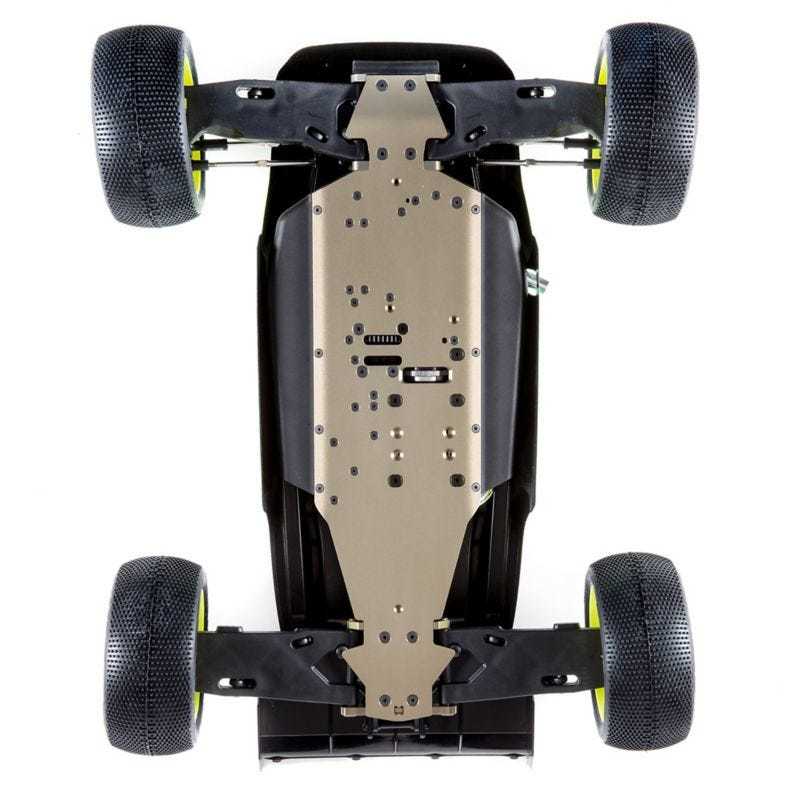

- Hard anodized 3mm wide 7075 T-6 aluminium chassis
- Build time of 3-5 hours
- Increased durability from larger pinion bearing in front and rear
- Electric or nitro running items all included in the one box

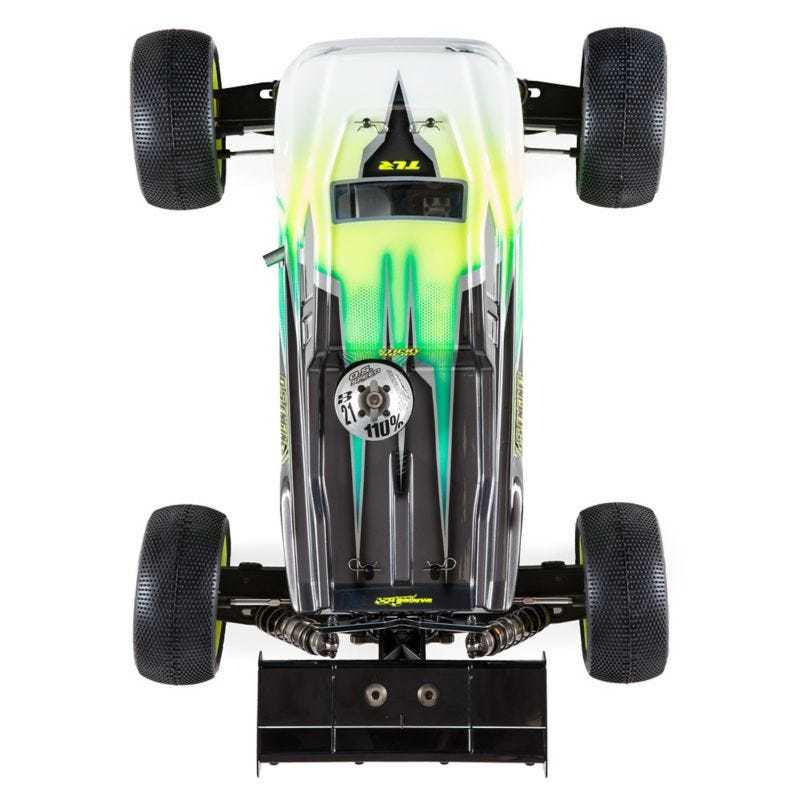

- Improved stability and steering from the cab forward body design style that increases downforce

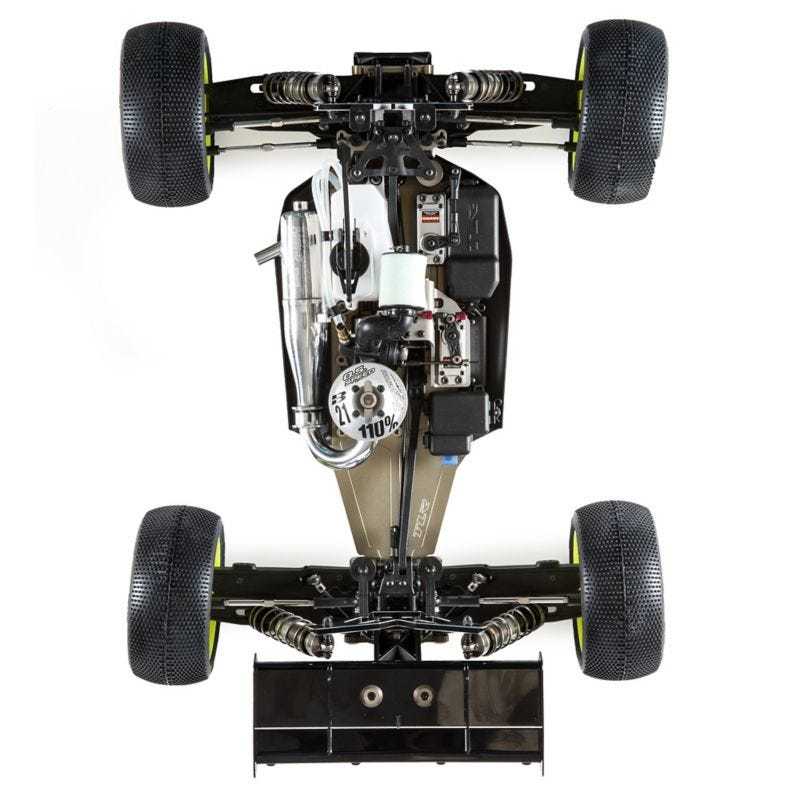

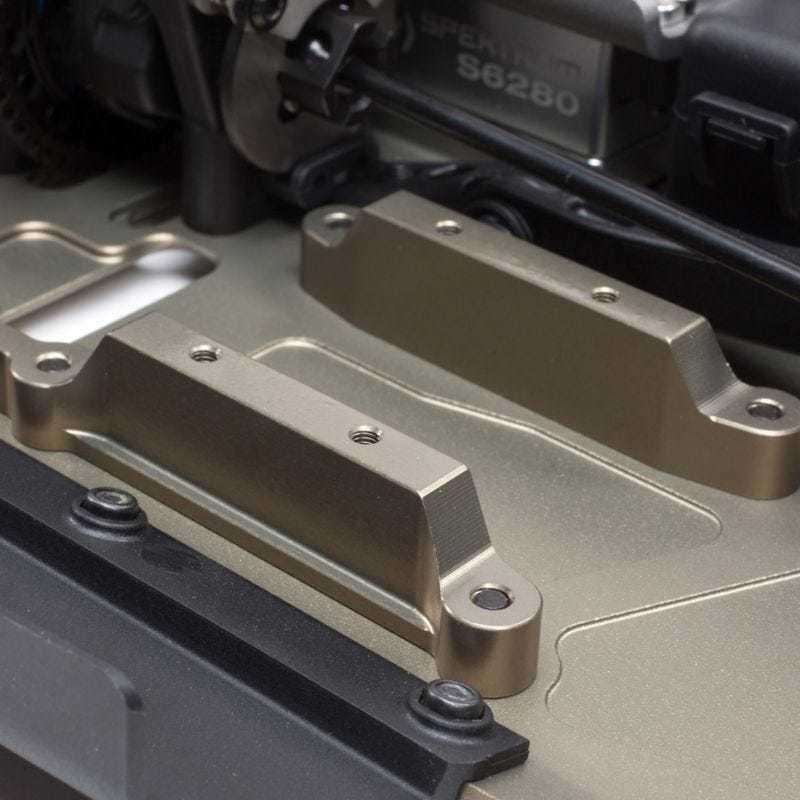

- For nitro set-ups there is a flex reducing large engine mount that eliminates chassis fatigue on high traction race surfaces

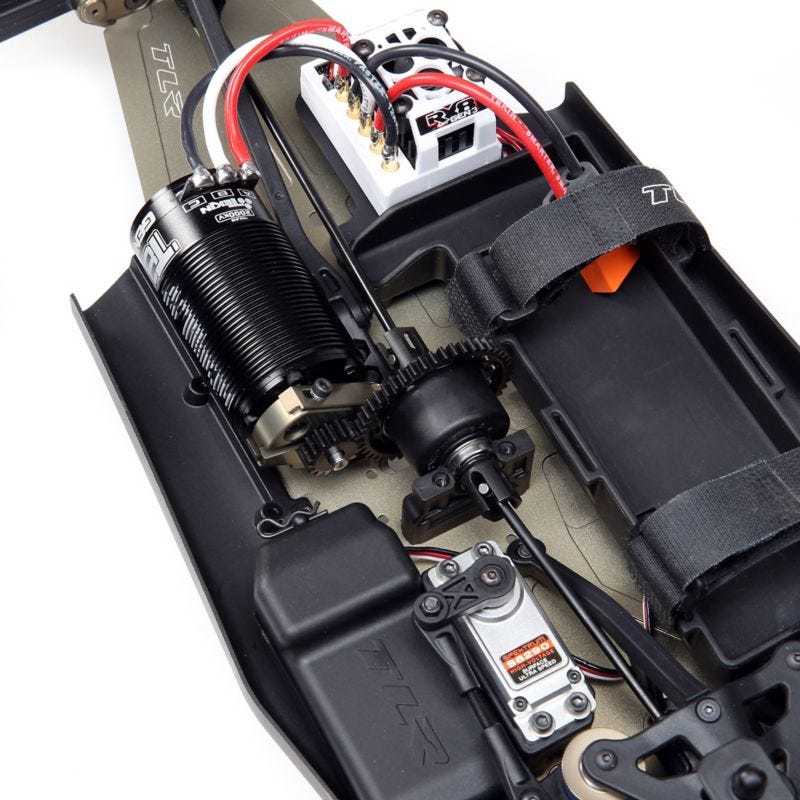

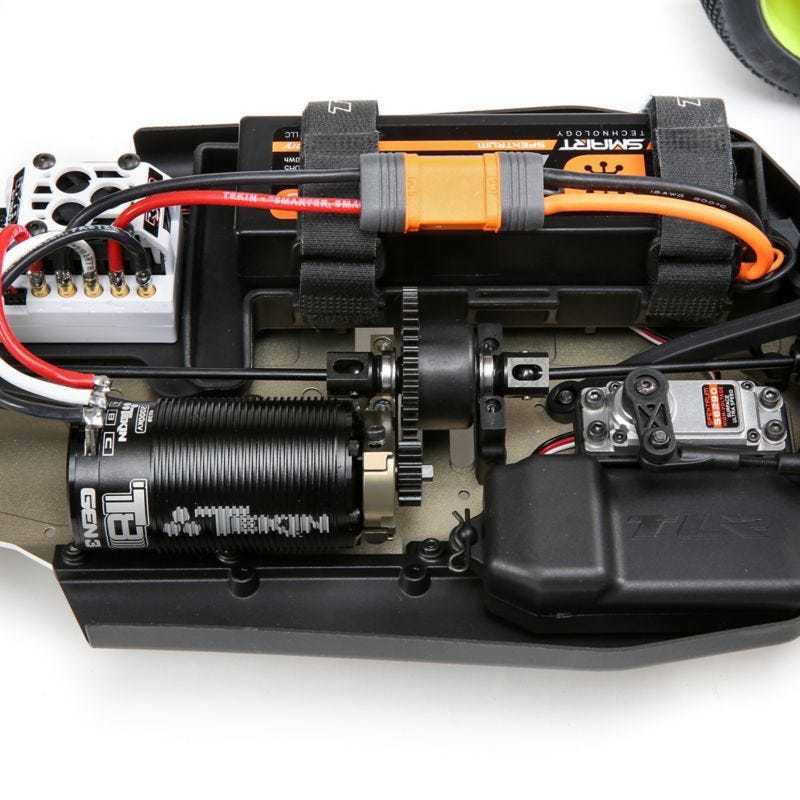

- Easily adjustable pinion sizing on the one-piece aluminium motor mount for electric motors
- Adjustable spindle height from 17.5 deg castor blocks

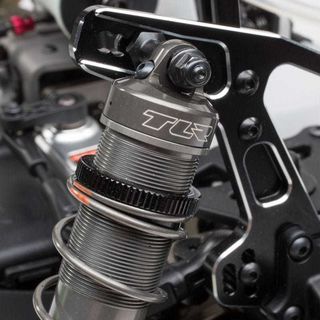

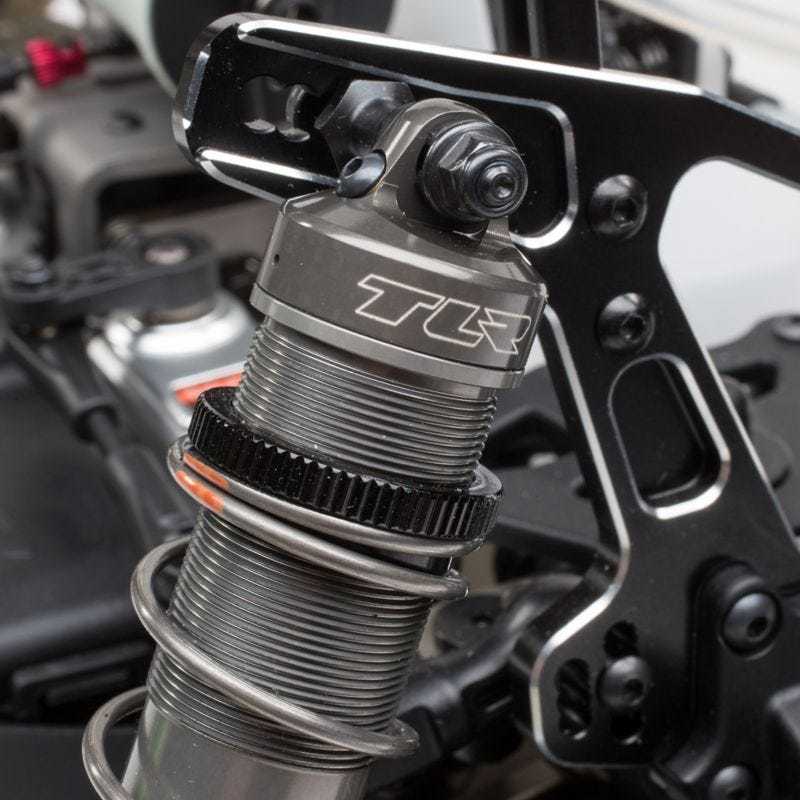

- Threaded bleeder holes on machined aluminium shock caps ensuring consistent and easy bleeding of oil
- Better driving balance with weight moved forward in the chassis
- Altered front and rear diff case allowing easier differential access without the need to remove bulkheads
- New chassis side guards designed for an even better fit to the chassis body

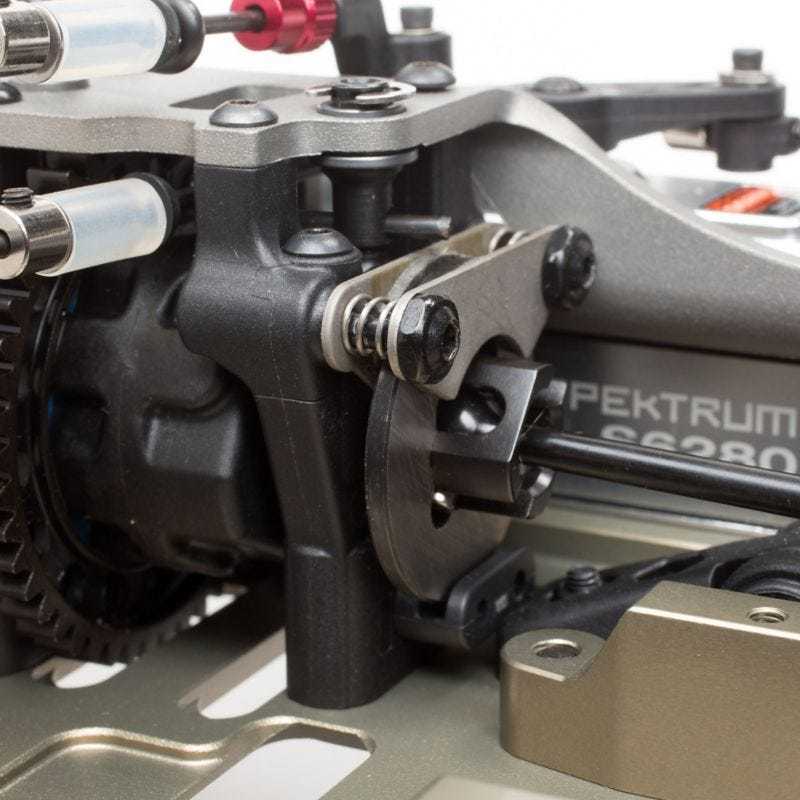

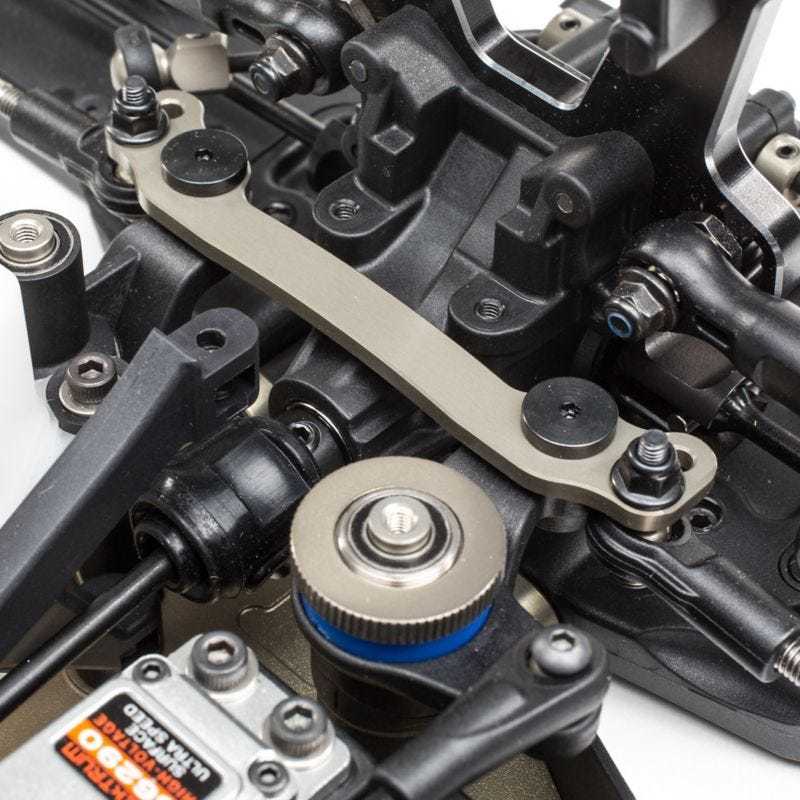

- Steering rack has been redesigned to allow increased Ackerman adjustments plus an improved servo saver eliminates bell crank bins occurring when under high loads
- 7075-T6 machined aluminium shock towers have been redesigned with updated camber link holes
- Modified centre driveshaft angles placed equally front to rear giving more of a 4WD feel
- Radio tray has been updated and battery box is LiPo/Li-ion compatible
- Lightened shocks have been optimized and give a decreased centre of gravity and lowered the weight to the car

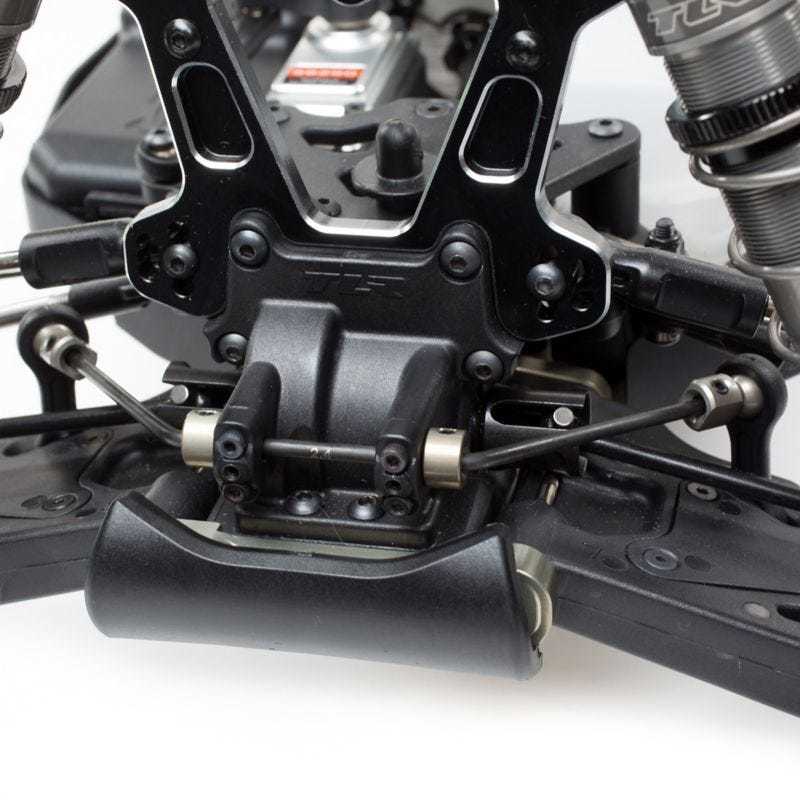

- Adjustable length links on the new sway bar system enable improved equalization of each side of the sway bar as well as centring collars to keep sway bar positions optimised

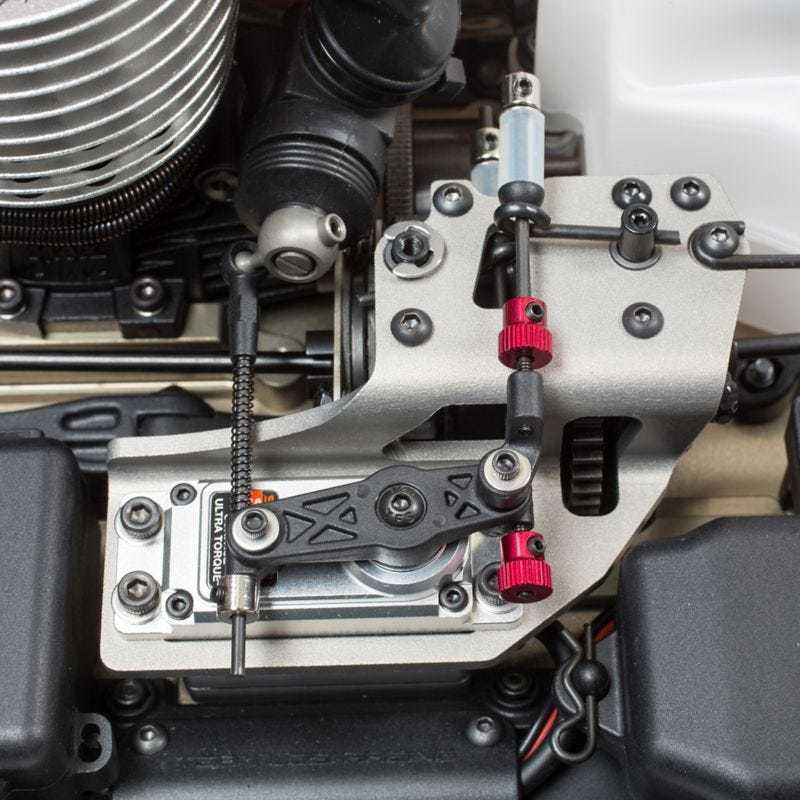

- Very even throttle/brake feel on the actuator with ball bearings used to smooth out acceleration/deceleration
- Agile handling and superb grip from shorter wheelbase

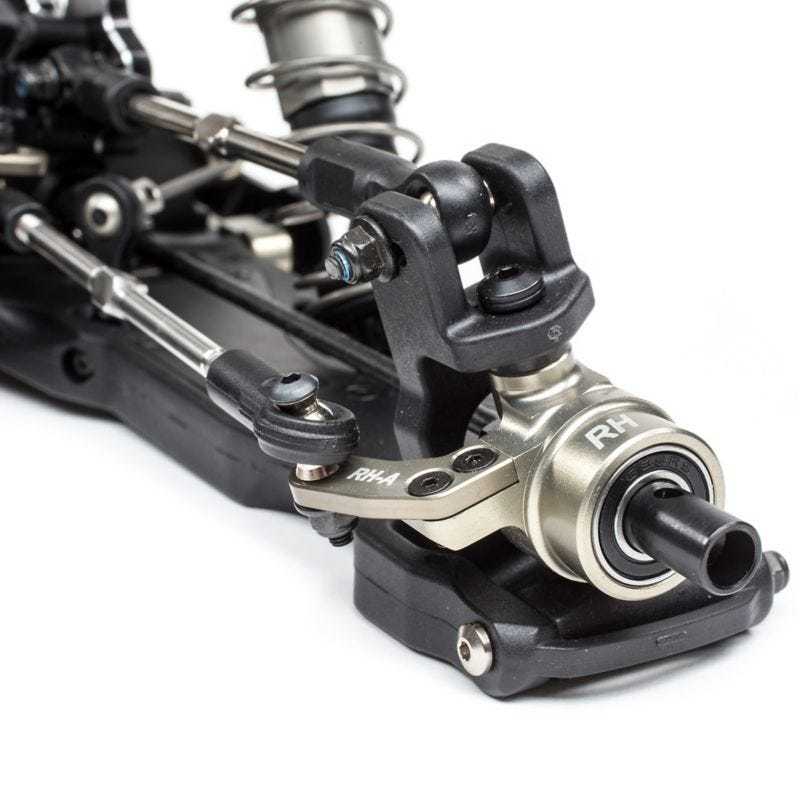

- Large bearing spindles and carriers
Specifications
- Type:
- Nitro/Electric 4WD Truggy
Completion Level:- Kit
Scale:- 1/8
Length:- 21.1 in (535mm)
Width:- 16.6 in (421mm)
Height:- 7.3 in (185mm)
Weight:- 9.0 lb (4.1kg)
Ground Clearance:- 1.6 in (40mm)
Wheelbase:- 14.7 in (373mm)
Track:- 15.8 in (402mm)
Front Track:- 15.8 in (402mm)
Rear Track:- 15.8 in (402mm)
Chassis:- 3mm, 7075 T-6 Aluminum, Hard Anodized
Suspension:- Independent
Shock Type:- Aluminum Oil Filled
Drivetrain:- 4WD
Differential:- Sealed viscous filled gear differential
Pinion:- 13T Clutch Bell
Spur Gear:- 48T
Gear Pitch:- MOD1
Internal Gear Ratio:- 4.5:1
Final Drive Ratio:- 16.6:1
Speed Control Included:- No
Servos Included:- No
Body:- 8XT Unpainted
Ball Bearings:- Yes
Fuel Tank Capacity:- 150cc
Recommended Environment:- Closed Course Competition
Is Assembly Required:- Yes
Approx. Assembly Time:- 3-5 Hours
Contents
- Motor
- Electronic Speed Control
- Servo
- Radio System
- Charger
- Battery
- Paint
- Tools
- CA Glue
