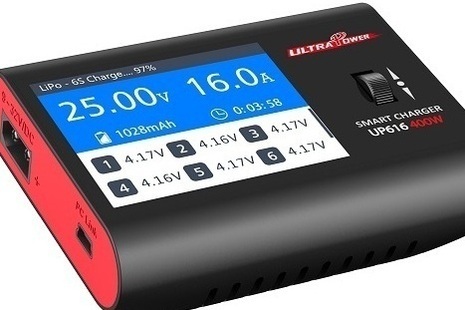

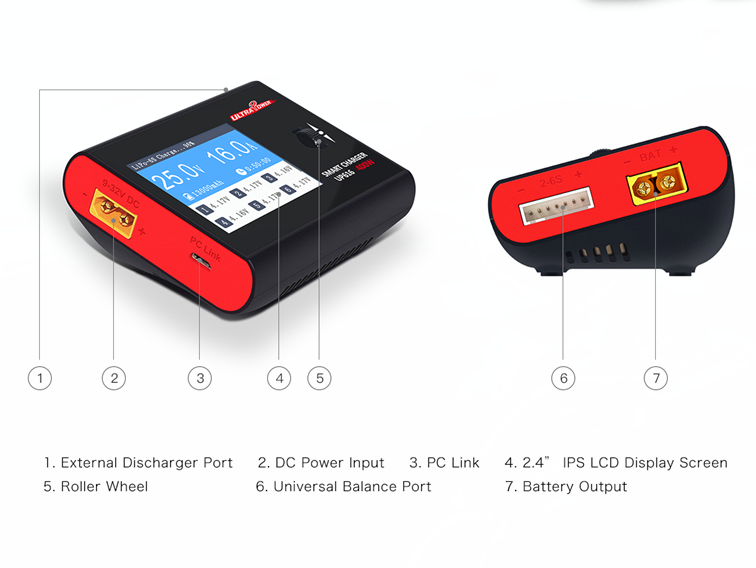

UP616 400W Multi-Chemistry DC Charger

The UP616 provides a huge 400 watts of power in a charger small enough to fit in the palm of your hand! The UP616 charger utilizes advanced synchronous DC power conversion technology to achieve an efficiency rating of over 90%. This means energy savings through efficiency, reduced heat build-up, and the ability to produce a small, compact and conveniently mobile charging device. Furthermore, the UP616 firmware can be updated through a convenient micro-USB port using a PC. Charges up to 6S LiPo or LiHV packs, up to 16 cell Nimh/Nicad packs and Pb lead acid batteries too.

Specifications:

Input Voltage: 9-32VDC
Output Voltage:0.1-30V
Charging Current:0.1-16A
Discharge Current:0.1-3A
Max Charge Power:400W
Max Discharge Power:8W (plus 200W external with optional discharger)
Balance Current:1000mA/cell
Battery Types: LiFe/Li-Ion/LiPo/LiHV (1-6S)
NiMH/Cd (1-16S)
Pb 1-12S
Display Type:2.4" IPS LCD
Dimensions:90 x 70 x 42mm
Weight:130g
